REX-C100 110-240V Digital PID Temperature Controller Kit All Input Relay Output with Alarm

This REX-C100 110-240V Digital PID Temperature Controller Kit features an all input and relay output design. Two rows of 4-digit display allow user to have a clear view of process value (PV) and setting value (SV). It also provides LED indicators of output, alarm and self-tuning control. Crafted from high-grade materials, it is tough and durable for long-lasting use. With high quality and stable performance, it surely is worth your investment. Click and order now!

Features

• Output and self-tuning can be indicated by LED
• Accurate temperature control
• Two rows of 4-digit display shows process value (PV) and setting value (SV)
• LED indicators of output, alarm and self-tuning control
• High quality, stable performance
• Support all input and relay output, with alarm

Specifications

Material	Plastic & Metal
Color	Black & White
Dimensions	(4.33 x 1.89 x 1.89)" / (11 x 4.8 x 4.8)cm (L x W x H)
Weight	6.53oz / 185g REX-C100 Temperature Controller
Measuring Accuracy	¡À0.5%FS
Cold-end Compensation Tolerance	¡À2¡æ can be Modified by Software in 0~50¡æ
Resolution	14 bit
Sampling Cycle	0.5 Sec
Power	AC 110-240V 50/60HZ
Process	Process Value (PV), Setting Value (SV)
Output and Self-tuning can be Indicated by	LED
PIN Control	Yes (Including ON/OFF, Step-type PID and Continuous PID)
Self-tuning control	Yes
Relay Output	Contact Capacity 250V AC 3A (Resistive Load)
Proportional Band (P)	0~Full Range (ON/OFF Control When Set to 0)
Detective Temperature Range	0 to 400¡æ
Insulation Resistance	>50M ohm(500V DC)
Insulation Resistance	1500V AC/min
Insulation Resistance	Power Consumption < 10 VA
Service Environment	0~50¡æ
Environment	with No Corrosive Gas 30~85% RH K Thermocouple Probe Cable
Length	1M
Sensor Diameter	4.5mm
Temperature Rang	0 to 400¡æ
Internal Insulation	Fiberglass
External Shielding	Insulated Shielding Max.40A SSR
Output Voltage Range	Standard Type
Output Current	40A
Input Voltage	DC 3-32V
Output Voltage	24-380V AC

Package Includes

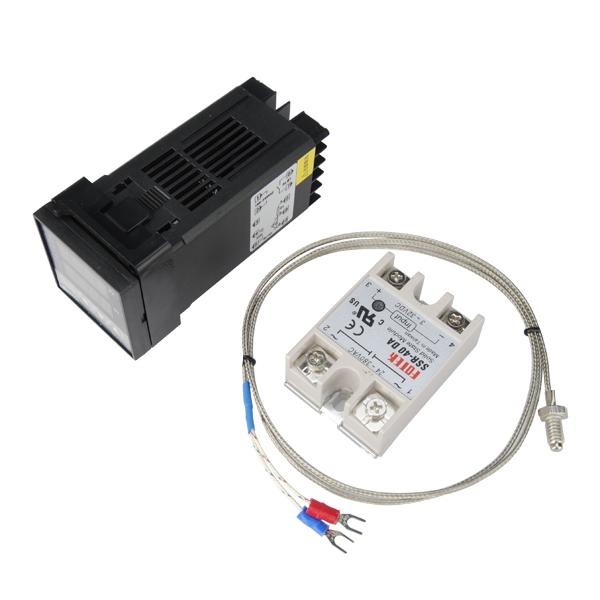

• 1 x REX-C100 PID Temperature Controller
• 1 x K Type Probe Sensor
• 1 x Max.40A SSR
